Arduino Compatible Compiler Error for Set Digital Pin Mode SubVI.
August 27, 2015
11:05 pm
Avatar
luvdeals2k
Phoenix, AZ
Member
Members
Forum Posts: 3
Member Since:
August 27, 2015
sp_UserOfflineSmall Offline
Go to Top
1sp_Permalink sp_Print

Community: Arduino Compatible Compiler Error for Set Digital Pin Mode - National Instruments <!----> <!-- -->

Hello, I attempted to recreate a Labview program for the Arduino MEGA2560 from Youtube. I am using Labview 2015 and the Arduino Compatible Compiler. I see the following error when attempting to compile the program. Does anyone know what this error means ? VI is attached.

I have tried this with LabVIEW 2014 and 2015.

"Running interepreter ............Error! subVI named Set Digital Pin Mode contains two or more terminals with duplicate names. Please rename the terminals so there are no duplicates."

When I open an existing VI within examples in the compatible compiled and look at the subVIs, these look quite different that I have from the Labview Arduino palette.

Is the error I am experiencing a version issue ?

Thank you.

August 27, 2015
11:22 pm
Avatar
Steffan
Admin
Forum Posts: 408
Member Since:
March 12, 2015
sp_UserOfflineSmall Offline
Go to Top
2sp_Permalink sp_Print

It sounds like you may be using subVIs from the LabVIEW Interface for Arduino palette (LIFA).  This is NOT the same as the Arduino Compatible Compiler for LabVIEW palette.  Please confirm you are using the correct palette set.  You can take a look at the included examples to help get you started.

August 27, 2015
11:38 pm
Avatar
luvdeals2k
Phoenix, AZ
Member
Members
Forum Posts: 3
Member Since:
August 27, 2015
sp_UserOfflineSmall Offline
Go to Top
3sp_Permalink sp_Print

Hello Steffan,

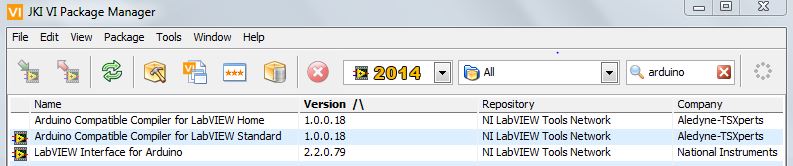

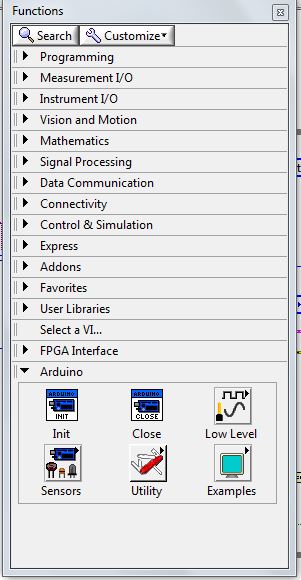

Where do i download this Arduino Compatible Compiler for LabVIEW palette ? I am attaching screenshots of my labview functions palette and I don't the palette you have mentioned.



Thank you much.

labview-palette.JPGImage EnlargerVIPM.JPGImage Enlarger

sp_PlupAttachments Attachments
August 27, 2015
11:40 pm
Avatar
Steffan
Admin
Forum Posts: 408
Member Since:
March 12, 2015
sp_UserOfflineSmall Offline
Go to Top
4sp_Permalink sp_Print

If you installed the compiler it will appear under the Addons palette.

August 27, 2015
11:43 pm
Avatar
luvdeals2k
Phoenix, AZ
Member
Members
Forum Posts: 3
Member Since:
August 27, 2015
sp_UserOfflineSmall Offline
Go to Top
5sp_Permalink sp_Print

Awesome ! I see it now. Many thanks.

August 27, 2015
11:48 pm
Avatar
Steffan
Admin
Forum Posts: 408
Member Since:
March 12, 2015
sp_UserOfflineSmall Offline
Go to Top
6sp_Permalink sp_Print

Ok good.  Your very welcome.
