MCU pin to LabVIEW pin
August 14, 2015
12:31 pm
Avatar
INEMSIS_Agta
New Member
Members
Forum Posts: 2
Member Since:
August 14, 2015
sp_UserOfflineSmall Offline
Go to Top
1sp_Permalink sp_Print

I use a Atmel Mega 32U4 with the Arduino bootloader and selfmade hardware.

Is there a Pin/Port overview for the complete MCU, because the pin values in labview are totaly mixt up.

Some examples:

MCU pin BD0 is in LabView pin 3

MCU pin PE6 is in LabView pin 7

MCU pin PB6 is in LabView pin 10

I couldn't find any relations or a system for the MCU pinout to LabVIEW pins.

August 14, 2015
3:24 pm
Avatar
Amornthep
Member
Members
Forum Posts: 22
Member Since:
April 8, 2015
sp_UserOfflineSmall Offline
sp_UserWebsite
Go to Top
2sp_Permalink sp_Print

Hi,

What's standard Arduino bootloader you are using ? e.g, Arduino Yun or Arduino Micro ?

The compiler is used the same pin/port out as standard Arduino board . Please refer as hardware schematic.

Amornthep,

August 14, 2015
3:45 pm
Avatar
Steffan
Admin
Forum Posts: 408
Member Since:
March 12, 2015
sp_UserOfflineSmall Offline
Go to Top
3sp_Permalink sp_Print

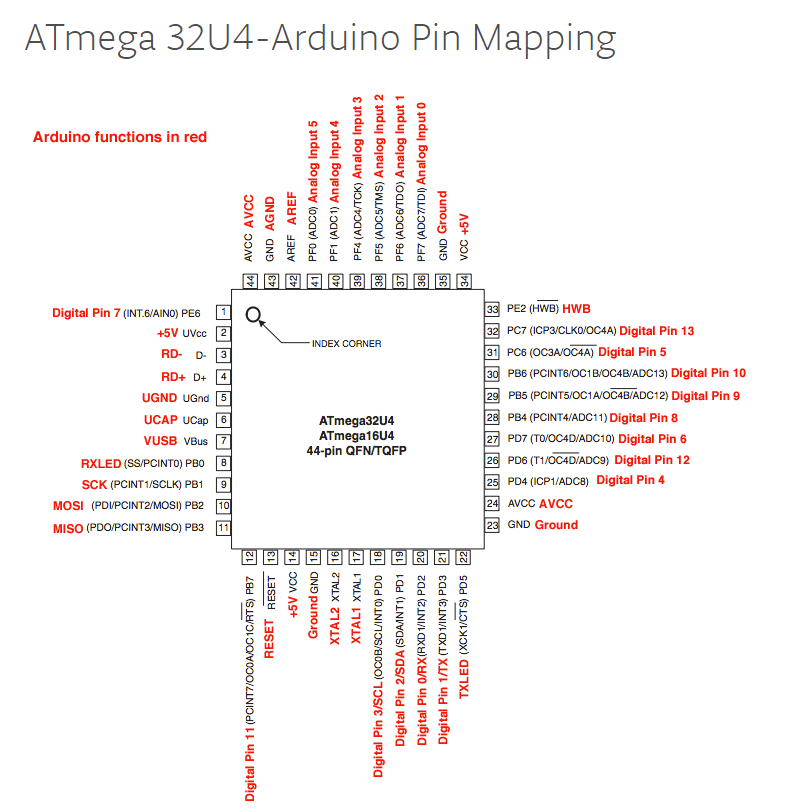

This is completely defined by the Arduino libraries, in the variants header file pins_arduino.h.  The documentation can also be found online here for the Mega 32U4:

https://www.arduino.cc/en/Hack.....apping32u4



It seems to correlate with your observations.

mapping.pngImage Enlarger

sp_PlupAttachments Attachments
August 20, 2015
6:17 am
Avatar
INEMSIS_Agta
New Member
Members
Forum Posts: 2
Member Since:
August 14, 2015
sp_UserOfflineSmall Offline
Go to Top
4sp_Permalink sp_Print

Thank you! That's exactly what I need!

Now everything works
